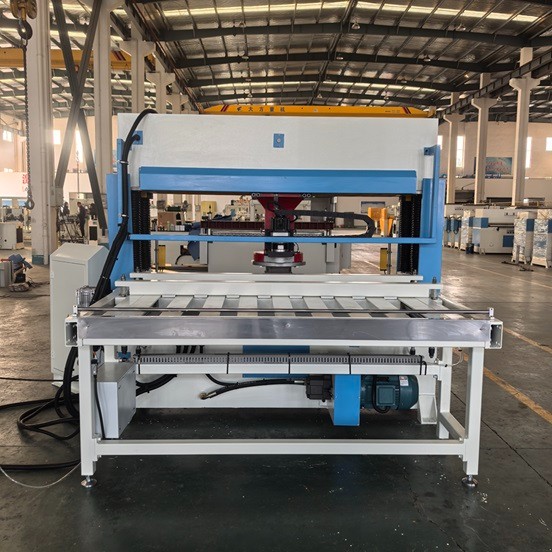

XYJ-1/40 砂纸片旋转头自动裁切机 Auto-feeding rotating head sandpaper disc cutting machine
本机主要用于对单层或多层砂纸进行批量连续的冲切作业。
It is mainly used for batch & continuous cutting operations on single or multiple layers of sandpaper. The moving head can rotate automatically.
冲裁力(kN) Max. cutting force | 400 |
上下压板间距离(mm) Rang between the working tables | 90-220 |
移动头尺寸(mm) Size of moving head | Dia. 400 |
下工作台面尺寸(mm) Size of lower worktable | 1800x600 |
送料电机功率(kW) Feeding motor power | 2.3 |
主电机功率(kW) Main motor power | 3 |
外形尺寸(mm) Overall size | 2360×2100×2130 |
整机重量(kgs) Total weight | 2950 |
